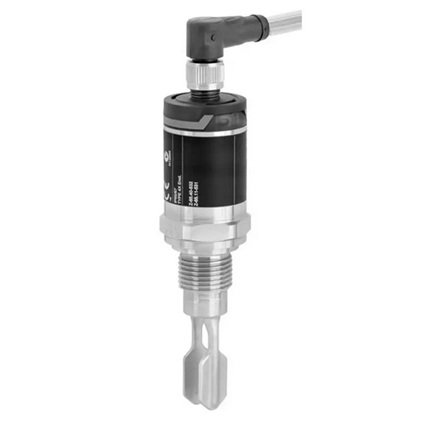

LVL-A7-AG1A-E5PU-NA 1/2″ Vibro viljuška- vibracioni detektor nivoa Pepperl+Fuchs

Supply
Rated voltage 10 … 35 V DC
Fusing external 500 mA slow
Current consumption < 15 mA
Power consumption 975 mW

Input Measured variable density
Measurement range min. 0.7 g/cm3
Output Output type switching output
Switching current max. 250 mA

Ambient temperature -40 … 70 °C (-40 … 158 °F)

Medium temperature -40 … 100 °C (-40 … 212 °F)

Process pressure (static pressure) -1 … +40 bar (-14.5 … +580 psi)

State of aggregation liquid

Density min. 0.7 g/cm3Degree of protection IP65/IP67
